Description
Renowned manufacturer of sterilization equipment
Lafomed is a brand of high-quality autoclaves recognized in more than 50 countries worldwide. The autoclaves comply with relevant standards and medical guidelines. These devices are characterized by low susceptibility to interference; the microprocessors use the latest generation of electronic modules. This makes Lafomed autoclaves highly effective , durable , and simultaneously easy and intuitive to operate.
Top-class autoclave – medical class B
The Lafomed LFSS03AA LCD 3 L autoclave is particularly recommended for hospital departments, dentistry and ophthalmology, as well as research facilities. This model is also perfect for hair and beauty salons , tattoo studios , and aesthetic practices. The device is designed for sterilizing both medical and non-medical instruments. Thanks to the collaboration between the technical departments of Lafomed and Prohaar , a device has been developed that will satisfy even the most demanding users. Sterilization via a class B autoclave ensures maximum effectiveness and safety for both packaged and unpackaged loads.
Features that speed up work

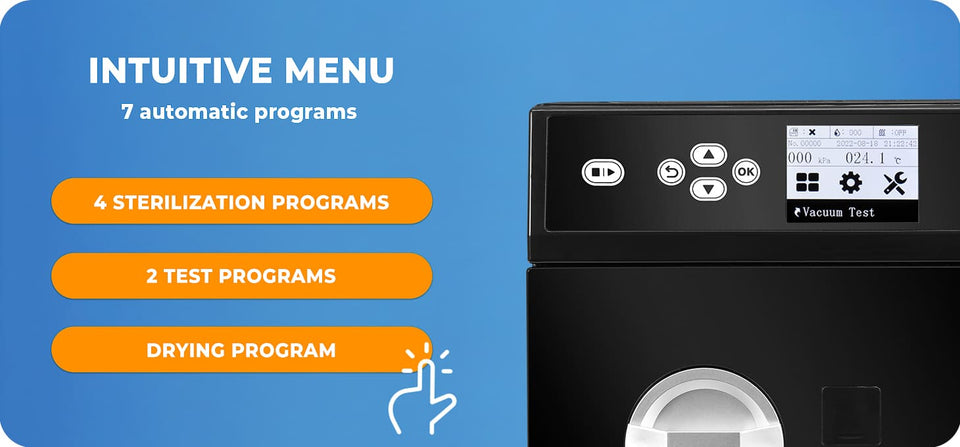

The autoclave features a clear LCD display and an SD memory card slot for storing cycle results. There are 7 fully automatic programs : 4 sterilization programs, 2 test programs, and 1 drying program. The menu is intuitive, and the user-friendly interface is in English. The preheating and hold-warm functions save time and speed up cycle start-up. The Lafomed LCD 3 L also stands out for its fast sterilization programs : the shortest cycle for unwrapped instruments takes 6 minutes (including drying) and for wrapped instruments 8 minutes (after heating).
Well-thought-out, solid solutions

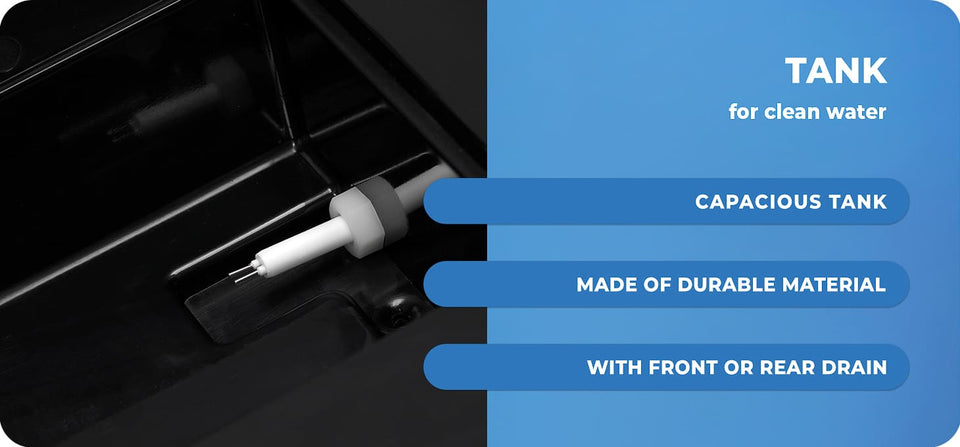

The device has a built-in tank for clean (distilled) water used for sterilization. The self-diagnosis system effectively protects against damage and supports the device's long lifespan.
Automatic sterilization programs
| Sterilization programs
|
Type of load
|
Total cycle time*
|
| 134° Fast |
Packaged and unpackaged; solid, textile, hollow |
8 minutes |
| 134° Universal |
Packaged and unpackaged; solid, textile, hollow |
10 minutes |
| 121° Universal |
Packaged and unpackaged; solid, textile, hollow |
28 minutes |
| 134° Solid |
Unwrapped; light (use immediately after sterilization) |
6 minutes |
*Time applies after the device has warmed up.

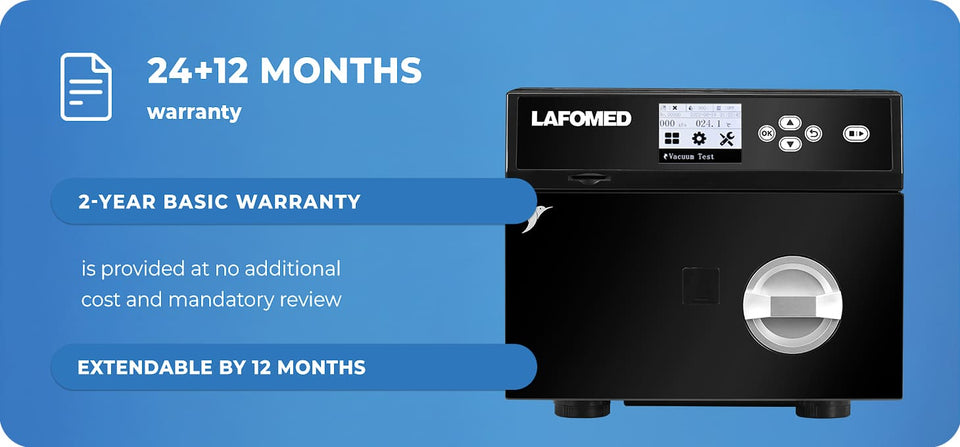

Warranty (24 + 12 months) and technical passport
The Lafomed autoclave is covered by a 24-month warranty . Important: the warranty is not dependent on the number of cycles performed. The warranty can be extended by 12 months , provided a paid technical inspection is performed at an authorized service center before the basic warranty expires (optional for units purchased from August 22, 2022). A technical passport is also included.
On the door there is a cover under which there is a mechanism that is intended for service purposes only .
Specification
| Medical class B
|
The highest class autoclaves for highly effective sterilization of unpackaged and packaged items, regardless of the instrument type. |
| High quality
|
Autoclave produced according to ISO 13485 and CE 1023 certified. |
| Capacity 3 liters
|
Compact yet very practical. Unlike cassette autoclaves, this 3L model has a water tank, a drying time setting, and a stainless steel chamber. |
| Compact size
|
Takes up little space and is easier to move than larger autoclaves. |
| Sterilization of loose or packaged tools
|
Class B allows sterilization of both unwrapped and wrapped instruments (solid or hollow). |
| LCD display
|
Displays time, temperature, pressure and cycle progress. |
| Simple and efficient operation
|
Intuitive menu for quick program selection and parameter setting; interface is in English. |
| 7 automatic programs
|
4 sterilization programs, 2 test programs (Bowie & Dick and vacuum test) and a drying program. |
| Rapid sterilization
|
Fastest program: 6 minutes including drying (unwrapped) and 8 minutes (wrapped). Adjustable drying time. |
| SD card reader
|
Store cycle data digitally and preserve valuable evidence. |
| Built-in tank for clean water
|
An external collection point is required for used water. |
| Preheat and keep warm
|
After switching on, the appliance heats up and stays warm to save time when starting a cycle. |
| Self-diagnosis
|
Effective protection against damage. |

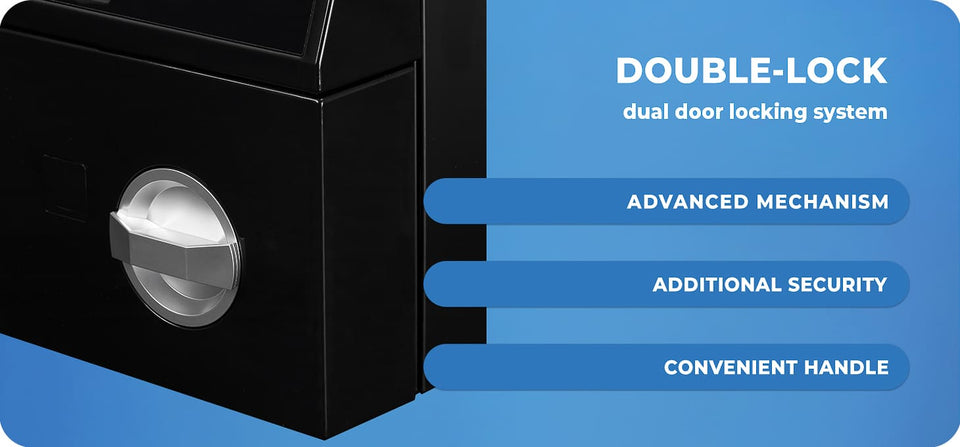

| Double door locking
|
Advanced system that secures the door mechanically and electronically. |
| Two trays for instruments
|
A dental cassette can also be placed optionally. |
| Stainless steel chamber (304)
|
Highly durable and aesthetic, and an indicator of high quality. |
| Meets sanitary and epidemiological requirements
|
This autoclave meets international standards.
|
| Warranty
|
24-month warranty with the option of a 12-month extension. |
| Technical passport
|
The technical passport is included in the set. |
Technical data
| Certificates |
CE 1023, ISO 13485
Standard PN-EN 13060: 2004 + A2: 2010 |
| Assets
|
2.9 kW |
| Tension
|
220-240 V |
| Frequency
|
50 Hz |
| Maximum operating temperature
|
137 ℃ |
| Maximum working pressure
|
0.24 MPa |
| Design print
|
-0.1 / 0.27 MPa |
| Safety valve set pressure
|
0.24 MPa |
| Opening pressure safety valve
|
0.24 MPa ~ 0.26 MPa |
| Fresh water tank contents
|
1 L |
| Drying time
|
1-25 min |
| Vacuum cycles
|
1-10 times |
| Timetable
|
4-60 min |
| Room contents
|
3 liter |
| Dimensions (external)
|
24.5 x 29 x 59 cm |
| Packaging dimensions
|
30 x 34 x 65 cm |
| Room dimensions
|
7.5 x 19; depth 32 cm |
| Material room
|
Stainless steel 304 |
| Net weight
|
20 kg |
| Weight incl. packaging
|
24 kg |
Set contents: Autoclave, drain hose, tray, power cord, tray removal holder, English manual, and technical passport.
Features / Key Benefits
- ✔ Medical class B sterilization for maximum safety
- ✔ Suitable for packaged and unpackaged instruments (solid, textile, hollow)
- ✔ LCD display with status, temperature and pressure
- ✔ SD card slot to store cycle data
- ✔ 7 automatic programs (sterilization, tests and drying)
- ✔ Fast programs : 6 min (unwrapped) and 8 min (wrapped) after heating
- ✔ Built-in fresh water tank and self-diagnosis
- ✔ 304 stainless steel chamber for durability
- ✔ 24-month warranty with option to extend
Instructions for use
Fill the built-in tank with distilled water . Place instruments in the trays (wrapped or unwrapped, depending on the workflow). Select the desired program (sterilization, test, or drying) from the menu and start the cycle. Afterward, allow the instruments to dry/cool according to the selected settings. Save cycle results via the SD card if necessary. Empty the used water into an external container and clean the trays and chamber according to current hygiene protocols.
Is this autoclave suitable for tattoo studios and salons?
Yes, the Lafomed LFSS03AA LCD 3 L is suitable for professional environments such as tattoo studios, beauty and hair salons, and medical practices.
What does medical class B mean?
Class B is the highest autoclave class and allows sterilization of both wrapped and unwrapped instruments, including hollow items.
How many programs does the device have?
There are 7 automatic programs : 4 sterilization programs, 2 tests and 1 drying program.
Can I save cycle data?
Yes, you can save cycle results for evidence and archive via the SD memory card slot .
How fast is sterilization?
The fastest cycle takes 6 minutes including drying (unwrapped) and 8 minutes for wrapped instruments, after warming up.
Do I need to use special water?
Yes, for sterilization you use distilled water in the built-in clean water tank.
Can I control the drying time?
Yes, the appliance has the option to control the drying time (1–25 min).
Is the room made of stainless steel?
Yes, the chamber is made of stainless steel 304 , which is very durable and hygienic.
Which instruments can I sterilize?
Both medical and non-medical devices, including solid, textile and hollow instruments (packaged or unpackaged).
What's in the set?
Autoclave, drain hose, tray, power cord, tray removal holder, manual (EN) and technical passport.
